Shrink Tunnel IP |
|
|
Shrink Tunnel IP - 3015, 3020, 4515, 4525, 4525L,
4535L
This series of shrink tunnel offers superior performance, easy
operation, latest features, compact size and metal enclosure. Robust in design,
these are applicable for a wide range of packing applications using wrapping
machines like shrink wrapping machines. We have designed this machine with the
objective of durability, clear visibility, tamper proof and total protection
from environmental factors. |
|
 |
|
| Model |
IP 3015 |
IP 3020 |
IP 4515 |
IP 4525 |
IP 4525L |
IP 435 L |
| Tunnel Size (W x H) mm |
300 x 150 |
300 x 200 |
450 x 150* |
450 x 250* |
450 x 250* |
450 x350* |
| Heater |
Tubular Type |
Tubular Type |
Fin Type |
Fin Type |
Fin Type |
Fin Type |
| Voltage (V/Hz) |
220/50 |
220/50 |
220/440/50 |
220/440/50 |
440/50 |
440/50 |
| Power Consumption (KW) |
3.5 |
4.2 |
6.5 |
6.5 |
9.6 |
9.6 |
| Conveyor Loading (Kg) |
15 |
15 |
15 |
15 |
30 |
30 |
| Heating Furnace (mm) |
800 x 300 x 150 |
800 x 300 x 200 |
900 x 450 x 150* |
900 x 450 x 250* |
1200 x 450 x 250* |
1200 x 450 x 350* |
| Overall Dimension (mm) |
1150 x 560 x 1170 |
1150 x 560 x 1220 |
1200 x 610 x 1000 |
1200 x 610 x 1000 |
1600 x 610 x 1000 |
1600 x 610 x 1100 |
| Speed (m/min.) |
0 ~ 10 |
0 ~ 10 |
0 ~ 10 |
0 ~ 10 |
0 ~ 10 |
0 ~ 10 |
| Heating Time (minutes) |
5 |
5 |
10 |
10 |
10 |
10 |
| Cooling Time (minutes) |
15 |
15 |
15 |
15 |
15 |
15 |
| Net Weight |
70 |
80 |
90 |
90 |
120 |
120 |
|
|
|
|
|
|
| |
|
Shrink Tunnel with Web Sealer
The shrink tunnel machine with sealer IP 1045, 104535, 1055 and
1065 is designed for unique and special packing requirements of our clients.
Produced using advanced sophisticated machines and infrastructure, these
machines are high in performance, utility, easy to operate and serve for long.
| Model |
IP
5530M-PE |
IP
5540M-PE |
IP5530L-PE |
IP5540L -PE |
| Tunnel Size (W x
H) mm |
550 x 300 |
550 x 400 |
550 x 300 |
550 x 400 |
| Heater |
Fin Type |
Fin Type |
Fin Type |
Fin Type |
| Voltage
(V/Hz) |
440 /50 |
440 /50 |
440 /50 |
440 / 50 |
| Power
Consumption (KW) |
15 |
18 |
24 |
24 |
| Conveyor Loading
(Kg) |
40 |
40 |
80 |
80 |
| Heating
Furnace |
1400x550x300 |
1400x550x400 |
2000x550x300 |
200x550x400 |
| Overall
Dimension |
2470x710x1350 |
2470x710x1450 |
3200x710x1350 |
3200x710x1450 |
| Speed
(m/min.) |
0 ~ 10 |
0 ~ 10 |
0 ~ 10 |
0 ~ 10 |
| Heating Time
(minutes) |
10 |
10 |
10 |
10 |
| Cooling Time
(minutes) |
15 |
15 |
15 |
15 |
| Net Weight |
260 |
280 |
320 |
350 |
Web Sealer
| Model |
IPTF-6540 |
| Voltage
(V/Hz) |
AC 220/50 or 110
/ 50 |
| Motor Power
(KW) |
1.5 |
| Packing speed
(pcs/min) |
12 |
| Max packing
dimension (LxWxH) (mm) |
530
X330X380 |
| Max Sealing
length (mm) |
650 |
| Height of
conveyor (mm) |
800+50
(Adjustable) |
| Working air
pressure (kgf/m²) |
6-8 |
| Dimension
(LxWxH) (mm) |
1550 x
1400x1920 |
| Weight (kg) |
400 |
|
|
|
|
|
|
|
Shrink Chamber IP-2000 Series
IP – 2000 series of shrink chamber is high in performance,
reliability and error free. Designed to satisfy individual specific needs and
requirements, the machine is quality checked and is in compliance with industry
standards and guidelines.
| Model (LxW) |
IP-2025 |
IP-2035 |
IP-2055 |
| Sealing Area |
300x280mm |
450x350mm |
550 x400 mm |
| Model Product Height
(H) |
250 mm |
250 mm |
250 mm |
| Power Source |
220v, 50v, 1Ph |
220v, 50v, 1Ph |
220v, 50v,1Ph |
| Max. Power
Req. |
1.25 kW |
1.7kW |
20
Kw |
|
|
|
|
|
|
Strapping Machines
Table Top Strapping Machines IP 501 Series
We present our high quality table top strapping machines. These
offer economical and reliable strapping solutions. The machine is ruggedly
designed to be used in varied packing areas and shipping locations. The
strapping machine is mostly used to reinforce corrugated boxes for shipping or
to bundle two or more boxes together for saving shipping or courier
charges.
|
|
| Model |
Table op IP
501H |
Low Table Top IP
501L |
Side Sealing IP
501S |
Pallet Strapping IP
501 P |
| Max. Strap Size
(mm) |
Not Stipulated |
Not Stipulated |
Not Stipulated |
Not Stipulated |
| Min. Strap size
(mm) |
60 x 30 |
60 x 30 |
60 x 30 |
60 x30 |
| Strapping Speed
(seconds) |
1.5 |
1.5 |
1.5 |
1.5 |
| Strap Width (mm) |
6 15 |
6 15 |
6 15 |
6 15 |
| Strap Force
(Newton) |
450 |
450 |
450 |
450 |
| Working Table Height
(mm) |
750 |
500 |
Adjustable |
.... NA.... |
| Power Source (V/
Hz) |
220 / 50, ¼ HP |
220 / 50, ¼ HP |
220 / 50, ¼ HP |
220 / 50, ¼ HP |
| External Dimension
(mm) |
900 x 580 x 750 |
900 x 580 x 500 |
880 x675 x 1650 |
900 x 580 x 500 |
| Weight (kg) |
105 |
100 |
120 |
120 |
|
|
|
|
|
|
|
|
| |

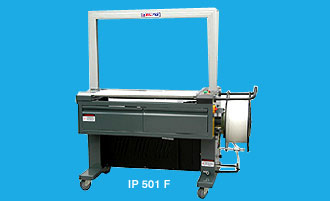

Fully Automatic
Strapping Machines
| Model |
Automatic IP 501
F |
| Max. Strap Size
(mm) |
800 x 600* |
| Min. Strap (mm) |
80 x 50 |
| Strapping Speed
(seconds) |
2 |
| Strap Width (mm) |
9 15 |
| Strap Force
(Newton) |
25 -700 |
| Working table Height
(mm) |
830 |
| Power Source (V/Hz) |
440 / 50, 0.1.2
HP |
| External Dimensions
(mm) |
1420 x 650 x
1565 |
| Weight (kg) |
235 |
|
|
|
|
Continuous Band Sealer
Continuous Band Sealer IP 600 Series
We present highly advance continuous band sealers. Easy to
operate, these can be used for virtually any application where fast, secure
packing sealing is required. The sealer is superior in performance and
efficiency.
| Model |
IP 601 H/V |
IP 601 CV (Air
Flushing) |
IP 602V |
IP 603 V |
| Voltage (V/Hz) |
220 / 50 |
220 / 50 |
220 / 50 |
220 / 50 |
| Power (W) |
650 |
835 |
230 |
370 |
| Heat Sealing Power
(w) |
|
40 x 2 |
300 x 4 |
300 x 4 |
| Sealing Speed
(m/min.) |
0 12 (0 16) |
0 12 (0 16) |
0 10 |
8 |
| Sealing Width (mm) |
8 ~ 10 |
8 ~ 10 |
8 ~ 10 |
8 ~ 10 |
| Temperature range
(Deg.C) |
0 ~ 300 |
0 ~ 300 |
0 ~ 300 |
0 ~ 300 |
| Printing type |
Embossing
(Optional) |
Solid Ink Roller |
Nil |
Solid Ink Roller |
| Distance from the
sealing center |
|
|
|
|
| to the conveying table
(mm) |
10 ~ 40 |
10 ~ 40 |
Nil |
620 ~ 880 |
| Conveyor size (L x W)
mm |
840 x 153 |
930 x 180 |
1400 x 250 |
900 x 300 |
| Film Thickness (mm) |
0.08 |
0.08 |
0.12 to 0.18 |
0.12 to 0.18 |
| Single Conveyor
Loading (Kg) |
1 |
1 |
5 |
10 |
| Overall Conveyor
Loading (Kg) |
3 |
3 |
10 |
30 |
| Overall Dimension
(LxWxH) |
840 x 380 x320 |
1050 x 560 x 900 |
1450 x 680 x 1480 |
1950 x 550 x
1100 |
| Net Weight (Kg) |
32 |
62 |
107 |
150 |
|
|
|
|
|
|
| |
| Carton Sealer |
|
Continuous Band Sealer IP 600 Series
Carton sealer is ideal for carton packing used in
textile, food, medicines, merchandise, home appliances, chemicals and so on.
The machine adopts adhesive tape to seal carton, fast and economical and
easily adjustable. The sealer can finish two sides of upper and down part
ones a time. Mostly all these sealing done using cartoon sealer machines
like random carton sealer.
|
|
| Model |
IP- 6050
(Uniform) |
IP- 5050Q
(Pneumatic Operated Automatic) |
| Voltage (V/Hz) |
220 / 50 |
220 / 50 |
| Maximum Carton Size
(WxHxL) mm |
500 x 600 |
500 x 500 |
| Minimum Carton Size
(WxHxL) mm |
140 x 150 |
170 x 100 |
| Speed (m/min.) |
20 |
24 |
| Available Adhesive
Tape |
BOPP, water free
adhesive tape |
BOPP, water –
free adhesive tape |
| |
PVC Adhesive tape |
PVC adhesive tape |
| Height of Table
(mm) |
635-780 |
600-780 |
| Width of Adhesive
Tape (mm) |
48 60 76 |
48 60 76 |
| Size (Lx W xH) |
1755 x 740 x (1445
1605) |
1970 x 660 x (1280
1460) |
| Weight (kg) |
120 |
150 |
|
|
|
|
|
|
|
|
| |
| |

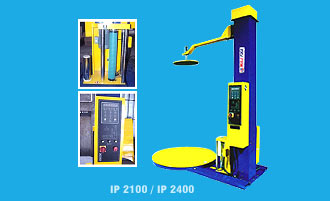

Stretch Wrapping Machine |
|
| |
We offer this product to our customers at an affordable
price. This stretch wrapping machine is fully automatic & can operate
continuously under severe industrial conditions. This kind of setup not only
allows it to work as a conventional stretch wrapper but also as a top bander
or semi-automatic stretch wrap machine if required.
|
|
| |
| Model |
IP 2100 |
IP 2400 |
| Voltage (V/Hz) |
AC 220 / 50 or 440
/ 50 |
AC 220 / 50 or 440
/ 50 |
| Power (W) |
1300 |
1300 |
| Max Packing height
(mm) |
2100 |
2400 |
| Max Packing weight
(Kg) |
2000 |
2000 |
| Diameter of
turntable (mm) |
1600 |
1500 |
| Turn Table Motor
(HP) |
1 |
1 |
| Turn Table Speed
(RPM) |
5 ~ 15 (Adjustable) |
5-15 (Adjustable) |
| Electro Magnetic
Brake (HP) |
1.3 |
1.3 |
| Film Carriage Motor
(HP) |
½ |
½ |
| Pre Stretch Motor
(HP |
½ |
½ |
| Available film |
LLDPE film with
outside |
LLDPE Film with
outside |
| |
Dia 280 mm, width
500 mm |
Dia. 280 mm, width
500 mm |
| Film Thickness
(microns) |
17~35 |
17~35 |
| Dimensions (LxWxH)
(mm) |
2800 x 1600 x 2400 |
2838 x 1636 x 803 |
| Weight (Kg) |
730 |
850 |
|
|
|
|
|
|
|
|
| |
| Vacuum Packing Machines |
|
We offer superior quality vacuum packing machines. These
are highly durable, easy to operate and are ideal for applications like
packing of meat products, sea food, medicine, electronic components,
hardwares, beancurd products, medical appliances etc.
|
|
| Model |
IPDZ 500 / 2ES |
IPDZQ 500/
2SB** |
IPDZQ 600 *** |
| Chamber |
Single or Double
(SS HUII) |
Double (SS HUII) |
No Limit |
| Voltage (v / Hz) |
220 / 50 |
440 /50 |
220 / 440, 50 |
| Vacuum pump power
(W) |
1500 |
1500 |
1100 |
| Sealing Power (W) |
750 |
750 |
750 |
| Sealing Width (mm) |
10 |
10 |
10 |
| Lowest Pressure of
Vacuum Chamber (KPa) |
1 |
1 |
1 |
| Sealing Position of
Vacuum Chamber |
2 |
2 |
1 |
| Volume Chamber Bulk
(Lx Wx H ) (mm) |
530 x 525 x 100 |
580 x 550 x 110 |
No Limit |
| Sealing Length (mm) |
500 |
500 |
600/ 700 / 800 /
1000 |
| Air Charging Volume
for Vacuum Pimp (m3/h) |
20 |
40 |
20 |
| Material for Vacuum
Case |
Stainless Steel |
Stainless Steel |
Nil |
| Dimensions (LxWxH)
mm |
580 x 650 x 1010 |
1260 x 780 x 960 |
960 x 940 x 1800 |
| Weight (Kg) |
125 |
220 |
230 |
|
|
|
|
|
|
|
|
| |
| |

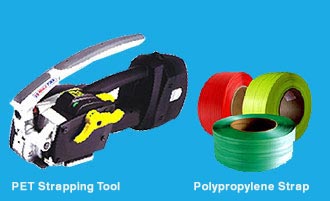

PET Strapping Tool |
|
| |
This tool has qualities like compact structure, light
weight, strong tension, tight buckle and convenient operation. This tool
combines the tension with the fastening buckle, it is different from the
conventional tool and is available at a effective cost range with us.
|
|
| |
| Model |
IP 501 PST |
| Strap |
Polypropylene (PP) &
Polyester (PET) |
| Strap dimensions |
12.7-19.0 (w) x
0.40 x 1.35 mm (Thickness) |
| Strap tension |
650-3000 N
(Adjustable) |
| Sealing Type |
Seal Less |
| Power supply |
14.4 VDC Battery |
| Weight |
4.5 kg |
|
|
|
|
|
|
|
|
| |
| |
Batch Coder |
|
| |
Batch coder is a high utility product which functions in
many applications such as to code mandatory/obligatory variable information
like Best Before, Batch No., Mfg. Date, Exp. Date, M.R.P. Incl. Of All Taxes
or any other details simultaneously in one stroke. We offer this product at
a competitive price range for our esteemed customers.
|
|
| |
| Model |
IPC 600 |
| Voltage (V/Hz) |
220/50 |
| Power (W) |
180 |
| Ink roller size
(mm) |
35x 32 35 x16 |
| Printing Speed (pcs
/ min) |
300 |
| Object size (mm) |
L : 50-500 W:
30~190 |
| Type number |
T Type (10.5PT): 11
Lines (Max.10 Types / Line) |
| |
R Type (10.5PT) : 8
Lines (Max.8 Types/Line) |
| Printing size(mm) |
Within 60-250 |
| Type size (mm) |
2x1.5 (8PT),
2.5x2(9PT), 3x3 (10.5PT), 4x2.5 (18PT) |
| Dimensions (LxWxH)
(mm) |
440 x 345 x 300 |
| Net Weight (kg) |
23 |
|
|
|
|
|
|
|
|
| |
| |
Foot Sealer |
|
| |
We offer superior quality foot sealer. These provide
economical and durable sealing / packing solutions. We have designed it to
facilitate the requirements of many industries. Our foot sealer is a
reliable product to seal the packed product in order to prevent or reduce
the risk of damage.
|
|
| |
| Model |
IP 350 |
IP 450 |
IP 300 |
IP 400 |
| |
(Impulse Type) |
(Impulse Type) |
(Hot Bar Type) |
(Hot Bar Type) |
| Sealing Length (mm) |
350 |
450 |
300 |
400 |
| Sealing Width (mm) |
2~ 5 |
2 ~5 |
10 |
10 |
| Input Voltage
(V/Hz) |
220 / 50 |
220 / 50 |
220 / 50 |
220 / 50 |
| Heating Time (sec.) |
0~2.5 |
0~2.5 |
5 minutes |
5 minutes |
| Impulse Power (W) |
1200 |
1250 |
350 |
350 |
| Case Size (mm) |
450 x 510 x 880 |
550 x 520 x 880 |
345 x 485 x 880 |
445 x 485 x 880 |
| Weight (kg) |
19 |
21 |
14 |
16 |
|
|
|
|
|
|
|
|
|
|
© Kanika Enterprises , Delhi. All Rights
Reserved Developed and Managed by Website Pixel |
|
