Shrink Tunnel IP - 3015, 3020, 4515, 4525, 4525L,
4535L
This series of shrink tunnel offers superior performance, easy
operation, latest features, compact size and metal enclosure. Robust in design,
these are applicable for a wide range of packing applications using wrapping
machines like shrink wrapping machines. We have designed this machine with the
objective of durability, clear visibility, tamper proof and total protection
from environmental factors. |
|
 |
|
| Model |
IP 3015 |
IP 3020 |
IP 4515 |
IP 4525 |
IP 4525L |
IP 435 L |
| Tunnel Size (W x H) mm |
300 x 150 |
300 x 200 |
450 x 150* |
450 x 250* |
450 x 250* |
450 x350* |
| Heater |
Tubular Type |
Tubular Type |
Fin Type |
Fin Type |
Fin Type |
Fin Type |
| Voltage (V/Hz) |
220/50 |
220/50 |
220/440/50 |
220/440/50 |
440/50 |
440/50 |
| Power Consumption (KW) |
3.5 |
4.2 |
6.5 |
6.5 |
9.6 |
9.6 |
| Conveyor Loading (Kg) |
15 |
15 |
15 |
15 |
30 |
30 |
| Heating Furnace (mm) |
800 x 300 x 150 |
800 x 300 x 200 |
900 x 450 x 150* |
900 x 450 x 250* |
1200 x 450 x 250* |
1200 x 450 x 350* |
| Overall Dimension (mm) |
1150 x 560 x 1170 |
1150 x 560 x 1220 |
1200 x 610 x 1000 |
1200 x 610 x 1000 |
1600 x 610 x 1000 |
1600 x 610 x 1100 |
| Speed (m/min.) |
0 ~ 10 |
0 ~ 10 |
0 ~ 10 |
0 ~ 10 |
0 ~ 10 |
0 ~ 10 |
| Heating Time (minutes) |
5 |
5 |
10 |
10 |
10 |
10 |
| Cooling Time (minutes) |
15 |
15 |
15 |
15 |
15 |
15 |
| Net Weight |
70 |
80 |
90 |
90 |
120 |
120 |
|
|
|
|
|
|
| |
|
Shrink Tunnel with Web Sealer
The shrink tunnel machine with sealer IP 1045, 104535, 1055 and
1065 is designed for unique and special packing requirements of our clients.
Produced using advanced sophisticated machines and infrastructure, these
machines are high in performance, utility, easy to operate and serve for long.
| Model |
IP
5530M-PE |
IP
5540M-PE |
IP5530L-PE |
IP5540L -PE |
| Tunnel Size (W x
H) mm |
550 x 300 |
550 x 400 |
550 x 300 |
550 x 400 |
| Heater |
Fin Type |
Fin Type |
Fin Type |
Fin Type |
| Voltage
(V/Hz) |
440 /50 |
440 /50 |
440 /50 |
440 / 50 |
| Power
Consumption (KW) |
15 |
18 |
24 |
24 |
| Conveyor Loading
(Kg) |
40 |
40 |
80 |
80 |
| Heating
Furnace |
1400x550x300 |
1400x550x400 |
2000x550x300 |
200x550x400 |
| Overall
Dimension |
2470x710x1350 |
2470x710x1450 |
3200x710x1350 |
3200x710x1450 |
| Speed
(m/min.) |
0 ~ 10 |
0 ~ 10 |
0 ~ 10 |
0 ~ 10 |
| Heating Time
(minutes) |
10 |
10 |
10 |
10 |
| Cooling Time
(minutes) |
15 |
15 |
15 |
15 |
| Net Weight |
260 |
280 |
320 |
350 |
Web Sealer
| Model |
IPTF-6540 |
| Voltage
(V/Hz) |
AC 220/50 or 110
/ 50 |
| Motor Power
(KW) |
1.5 |
| Packing speed
(pcs/min) |
12 |
| Max packing
dimension (LxWxH) (mm) |
530
X330X380 |
| Max Sealing
length (mm) |
650 |
| Height of
conveyor (mm) |
800+50
(Adjustable) |
| Working air
pressure (kgf/m²) |
6-8 |
| Dimension
(LxWxH) (mm) |
1550 x
1400x1920 |
| Weight (kg) |
400 |
|
|
|
|
|
|
|

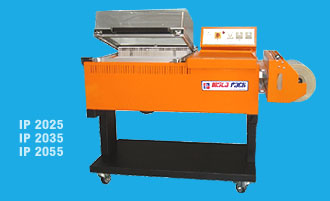

Shrink Chamber IP-2000 Series
IP – 2000 series of shrink chamber is high in performance,
reliability and error free. Designed to satisfy individual specific needs and
requirements, the machine is quality checked and is in compliance with industry
standards and guidelines.
| Model (LxW) |
IP-2025 |
IP-2035 |
IP-2055 |
| Sealing Area |
300x280mm |
450x350mm |
550 x400 mm |
| Model Product Height
(H) |
250 mm |
250 mm |
250 mm |
| Power Source |
220v, 50v, 1Ph |
220v, 50v, 1Ph |
220v, 50v,1Ph |
| Max. Power
Req. |
1.25 kW |
1.7kW |
20
Kw |
|
|
|
|
|
|
| |
